How to Remove Your Video Card from Your Mac Pro 5

Share This:

The Mac Pro 5.1 is an iconic workstation computer Mac released in 2013. It was the first desktop computer to feature Intel’s Xeon E5 processor and AMD’s FirePro D series of GPUs, making it ideal for creative professionals who require a powerful machine for their workflows. While the Mac Pro 5.1 is a great choice for those who need maximum performance and flexibility, it can also be difficult to upgrade due to its unique design. This blog post will walk you through how to remove the video card from your Mac Pro 5.1, so you can upgrade or replace it with ease.

First, power off your Mac Pro 5.1 and unplug all cables connected to it (power cable, display cables, etc). Next, open the side panel by pressing down on the latch located at the bottom right-hand corner of the computer case. You may need a flathead screwdriver to help pry open the latch if it’s stuck closed. Once inside, locate the graphics card – it should be near the top of the system board and easily recognizable as a large rectangular box with many ports (HDMI, DVI-D, etc).

Now that you’ve identified your graphics card, you can begin removing it from your Mac Pro 5.1:
1) Locate and loosen two screws securing your card in place – they should be near where the graphics card connects to your system board.
2) Gently pull up on one of the corners of your card until you feel resistance – this will disconnect it from its PCIe slot on your system board.
3) Carefully lift your card straight up until it comes free from its connection point – avoid twisting or turning as this could damage both your graphics card and system board!
4) Once removed, store your graphics card in an antistatic bag or another protective container until you’re ready to install a new one into place!

And there you have it – removing a graphics card from your Mac Pro 5.1 doesn’t have to be intimidating! With some patience and care (and maybe a flathead screwdriver), anyone can easily upgrade or replace their video cards with ease.

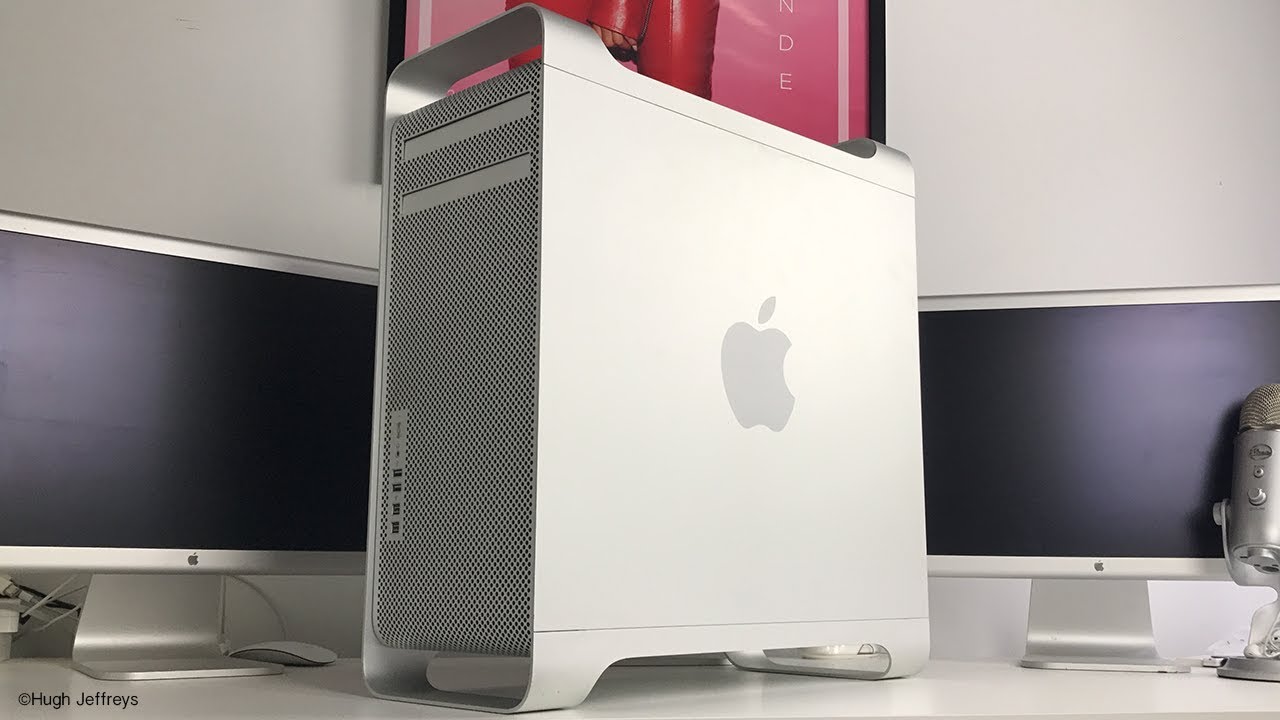

How to Remove Your Video Card from Your Mac Pro 5 1

Removing a Graphic Card

Yes, graphic cards can be removed from a computer. Most graphics cards are connected to the motherboard via the Peripheral Component Interconnect Express (PCIe) slot, which is a long, rectangular slot on the motherboard. To remove the card, you will need to power down and unplug your computer and open up the case. Depending on your case style, there may be a dedicated backplate for your graphics card or multiple screws holding it in place. Unscrew these screws and carefully pull out the graphics card from the PCIe slot. Be sure to keep track of all screws and other components when removing and replacing your graphics card.

If you have a laptop or an all-in-one PC with an integrated graphics card, it cannot be removed without professional help as it is soldered directly onto the motherboard.

Removing a Graphics Card from its Clip

To unclip your graphics card, start by locating the expansion slot it is in. Then, locate the release lever for that slot and gently pull it back to unlock the card from the slot. Once it is unlocked, you can slide the card out of the graphics slot. Make sure to carefully remove it from the computer and place it somewhere safe.

Removing the Graphics Card from a 2009 Mac Pro

To remove the graphics card from your 2009 Mac Pro, start by lifting the latch on the back of the PCIe card. Next, unscrew and remove the PCI bracket cover. Then, use the lock bar to release the card from its support slots. Finally, slide it out of the PCI slot. Be sure to keep track of all screws and other components as you go.

Can a Mac Pro Run Without a Graphics Card?

Yes, a Mac Pro can run without a graphics card. However, you will be limited to using the internal graphics processor (IGP) which is built into the Intel or AMD processor. This IGP may provide enough power for basic computing tasks such as web browsing and word processing, but it will likely not have enough power to run video games and other intensive applications. If you plan on doing any of this kind of work, then you should consider installing a dedicated graphics card in your Mac Pro.

Disconnecting a Graphics Card from a Mac

To disconnect your graphics card from your Mac, first, click on the e-GPU icon in the menubar and choose “Disconnect AMD Radeon RX Vega 56”. After this, disconnect the Displayport monitor cable from both the e-GPU and the monitor. Lastly, disconnect the Thunderbolt cable from the Mac and connect your monitor to the Mac mini with an HDMI cable. This will cause the desktop to show up again.
