How to Check Power Supply on PC Windows 10?

A power supply unit (PSU) is a crucial component in any computer system, as it provides the necessary electrical power for all the hardware to function properly. However, like any other component, PSUs can sometimes fail, leading to issues with your computer’s performance or even causing it to shut down unexpectedly. In this article, we will discuss how to test a PSU and check the power supply on a PC running Windows 10.

Before we proceed, it is important to ensure your safety while working with electrical components. Always shut off your PSU and unplug all cables except for the main AC cable and the 24-pin cable. This will prevent any accidental electric shocks or damage to your hardware.

To test your PSU, you can start by locating pin 16 and pin 17 on your 24-pin cable. These pins are usually green and black in color. Once you have identified them, take a paper clip and bend it so that the ends can be inserted into pin 16 and pin 17. This will create a short circuit and allow you to check if the PSU is functioning properly.

After connecting the paper clip, turn on the PSU and observe if the PSU fan turns on. If it does, then it indicates that the PSU is receiving power and is most likely functioning correctly. However, this test only checks if the PSU can turn on; it does not provide information about its wattage or overall performance.

To check the wattage of your power supply, you will need to physically examine the unit or refer to the specifications in your computer’s manual or online documentation. Unfortunately, it is not possible to determine the wattage without opening the computer or referring to the manufacturer’s information.

If you want a more comprehensive and convenient method to check your PSU, you can purchase a power supply tester from any electronics store. These testers are plug-and-play devices that allow you to quickly and easily check the power supply without the need for manual testing.

For Windows 10 users, there is a built-in tool called the Power Meter that can help you check the power consumption of your PC. To access this tool, open the Settings app, click on the “System” category, and then navigate to the “Power & Sleep” tab. On the right side, you will find the “Power Meter” option. This tool provides real-time information about your PC’s power usage, allowing you to monitor and analyze its power supply performance.

Testing a PSU is an essential step in troubleshooting any issues with your computer’s power supply. By following the steps mentioned above, you can determine if your PSU is functioning properly or if it needs to be replaced. Additionally, utilizing the Power Meter tool in Windows 10 can provide valuable insights into your PC’s power consumption. Remember to always prioritize safety when working with electrical components and consult professional help if needed.

How to Check Power Supply on PC Windows 10? 1

How Do You Check Your Computer Power Supply?

To test your computer’s power supply unit (PSU), follow these steps:

1. Shut off your PSU: Make sure your computer is turned off and unplugged from the power source. Locate the switch on the back of the PSU and toggle it to the “off” position.

2. Disconnect unnecessary cables: Unplug all cables connected to the PSU, except for the main AC power cable and the 24-pin cable that connects to the motherboard.

3. Locate the appropriate pins: On the 24-pin cable, find pin 16 and pin 17. These pins are usually colored green and black, respectively.

4. Prepare a paper clip: Straighten out a paper clip and bend it into a U-shape, with the ends inserted into pin 16 and pin 17.

5. Connect the paper clip: Carefully insert the ends of the paper clip into pin 16 and pin 17 on the 24-pin cable. Make sure they are securely in place.

6. Turn on the PSU: Plug the power cable back into the wall socket and switch on the PSU. The PSU should now be powered on.

7. Observe the PSU fan: Look at the PSU fan located inside the power supply unit. If the PSU is functioning correctly, the fan should start spinning. This indicates that power is being supplied to the PSU.

By following these steps, you can determine if your PSU is working or not. However, please note that this test only checks if the PSU is receiving power and if the fan is functional. It does not evaluate the overall health or performance of the PSU. If you suspect any issues with your PSU, it’s recommended to consult a professional or consider replacing it if necessary.

How to Check Your Power Supply Wattage on PC Without Opening?

To determine the wattage of your power supply without opening your PC, you can follow these steps:

1. Check the computer’s manual or documentation: The easiest way to find out the wattage of your power supply is to refer to the computer’s manual or documentation. Look for specifications or technical information about the power supply unit. It should mention the wattage or power rating.

2. Check the manufacturer’s website: If you don’t have the manual or documentation, you can visit the manufacturer’s website and search for your computer model. Look for the specifications section or product details, where you should be able to find information about the power supply wattage.

3. Use system information utilities: On Windows, you can use built-in system information utilities to check the power supply wattage. Press the Windows key + R to open the Run dialog box, type “msinfo32” and hit Enter. In the System Information window, expand the “Components” category and click on “Power”. Here, you should be able to see the power supply wattage.

4. Check the BIOS: Restart your computer and enter the BIOS setup by pressing a specific key (usually Del or F2) during the boot process. In the BIOS setup, look for a section related to hardware or system information. It may provide details about the power supply wattage.

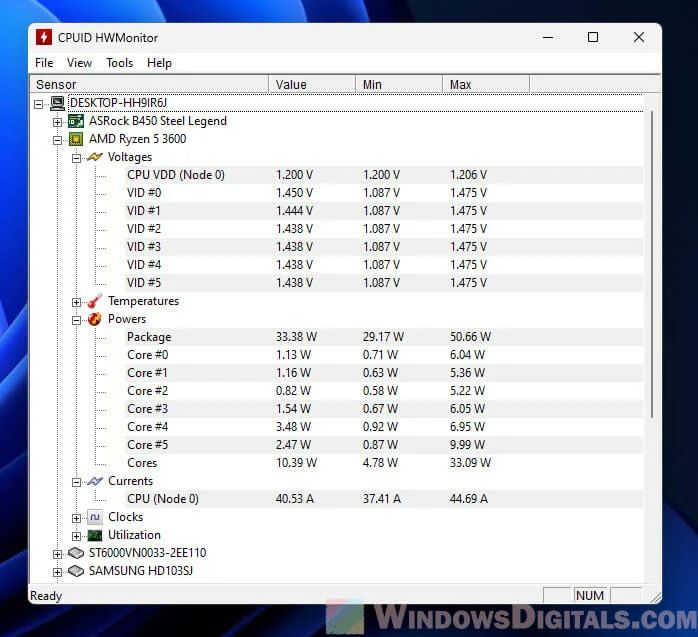

5. Use software tools: There are software tools available that can provide information about your computer’s hardware, including the power supply wattage. Examples include CPU-Z, HWMonitor, and Speccy. Download and install one of these tools, open it, and navigate to the section that displays power supply information.

It’s important to note that while these methods can provide an estimate of the power supply wattage, the most accurate way to determine the wattage is by physically examining the power supply unit or referring to the documentation.

How Do You Test the Power of Your PC?

To test the power of your PC, you can follow these steps:

1. Purchase a power supply tester: Visit any electronics store and look for a power supply tester. This device is specifically designed to test the power supply of your PC. It is a plug-and-play device, making it easy to use.

2. Disconnect power supply from your computer: Before testing the power supply, make sure to disconnect it from your computer. This involves shutting down your PC and unplugging the power cable from the wall outlet.

3. Connect the PSU tester: Once the power supply is disconnected, you can connect the PSU tester to it. The tester typically has multiple cables and connectors, including a 24-pin ATX connector for the motherboard and 4-pin or 8-pin CPU connectors.

4. Power on your PC: With the PSU tester connected, you can now power on your PC. The tester will display various indicators, such as LED lights or LCD screens, to show the status of the power supply.

5. Check the power supply: Observe the readings on the PSU tester to check the power supply. The tester will indicate if there are any issues with voltage levels, such as overvoltage or undervoltage. It may also provide information on current, wattage, and other relevant parameters.

6. Interpret the results: Based on the readings from the PSU tester, you can determine the health and performance of your power supply. If the readings fall within acceptable ranges, the power supply is likely functioning properly. However, if there are any abnormalities or warnings, it may be an indication of a faulty power supply that needs further investigation or replacement.

Remember that testing the power supply with a PSU tester provides a quick and convenient way to assess its functionality. However, it is not a comprehensive diagnostic tool. If you suspect major issues with your power supply or experience recurring problems with your PC’s performance, it is advisable to consult a professional or consider a more thorough evaluation.

How Do You Check Your Power Draw on Windows 10?

To check your power draw on Windows 10, follow these steps:

1. Open the Settings app by clicking on the Start menu and selecting the gear-shaped icon labeled “Settings.”

2. In the Settings app, locate and click on the “System” category. It is usually represented by an icon with a monitor and a keyboard.

3. Within the “System” category, click on the “Power & Sleep” tab on the left-hand side.

4. On the right side of the “Power & Sleep” tab, you will find the “Power Meter” option. It is represented by a battery icon.

5. Click on the “Power Meter” option to access the power consumption information.

Once you have accessed the Power Meter, you can view the power draw of your PC in real-time. The Power Meter provides detailed information about your PC’s power usage, including the amount of power being consumed at any given moment.

By monitoring the power draw, you can keep track of how much energy your PC is using, which can be helpful in optimizing power usage and potentially reducing electricity costs.

Conclusion

Testing a PSU (Power Supply Unit) is an important step to ensure its functionality and reliability. There are several methods you can use to test a PSU, such as using a paperclip to jump-start it or using a dedicated PSU tester. Both methods allow you to check if the PSU fan turns on, indicating that it is receiving power.

However, it is important to note that neither of these methods can determine the wattage of your power supply. To check the wattage, you would need to physically examine the power supply unit or refer to the specifications in your computer’s manual or online documentation.

If you prefer a more convenient and accurate option, you can use the Power Meter tool in Windows 10. This tool provides information about the power consumption of your PC, allowing you to monitor and optimize your power usage.

Regularly testing and monitoring your power supply is crucial to ensure the stability and longevity of your computer system. By taking these steps, you can identify any potential issues early on and take appropriate actions to maintain the efficiency of your power supply.
